Chapter 3: GIS Map: Colour, Ring and Hospital Type
1. Purpose#
To interpret the standardized GIS map symbology encoding bed availability, PM-JAY empanelment, and institutional ownership.2. Scope#
All mapped geospatial healthcare facilities across the district.3. Responsibility#
Command Room Operators and Emergency Dispatchers.4. Prerequisites#
Interactive Leaflet GIS map rendering on the command console.5. Procedure#
1. Locate the interactive GIS map on the district command console.
Click to Zoom
ID: district/d03_map_legend_annotated
📅 Screenshot Date: 27 Sep 2026
- Interpret the four core symbology rules:
- Callout 1 (Color - Vacancy Rate): Green = healthy vacancies (> 20%), Yellow = constrained (10% to 20%), Red = critical crisis (< 10% or zero), Grey = stale telemetry (> 60 mins).
- Callout 2 (Outer Ring - PM-JAY Status): Green halo ring indicates Ayushman Bharat PM-JAY empanelment; absence indicates non-empanelled.
- Callout 3 (Shape - Governance): Circular pin represents Government facility; Square pin represents Private hospital.
- Callout 4 (Pulsing Red Border): Severe ICU saturation alert requiring immediate intervention.
- Click any facility marker to open the real-time operational popup.
Click to Zoom

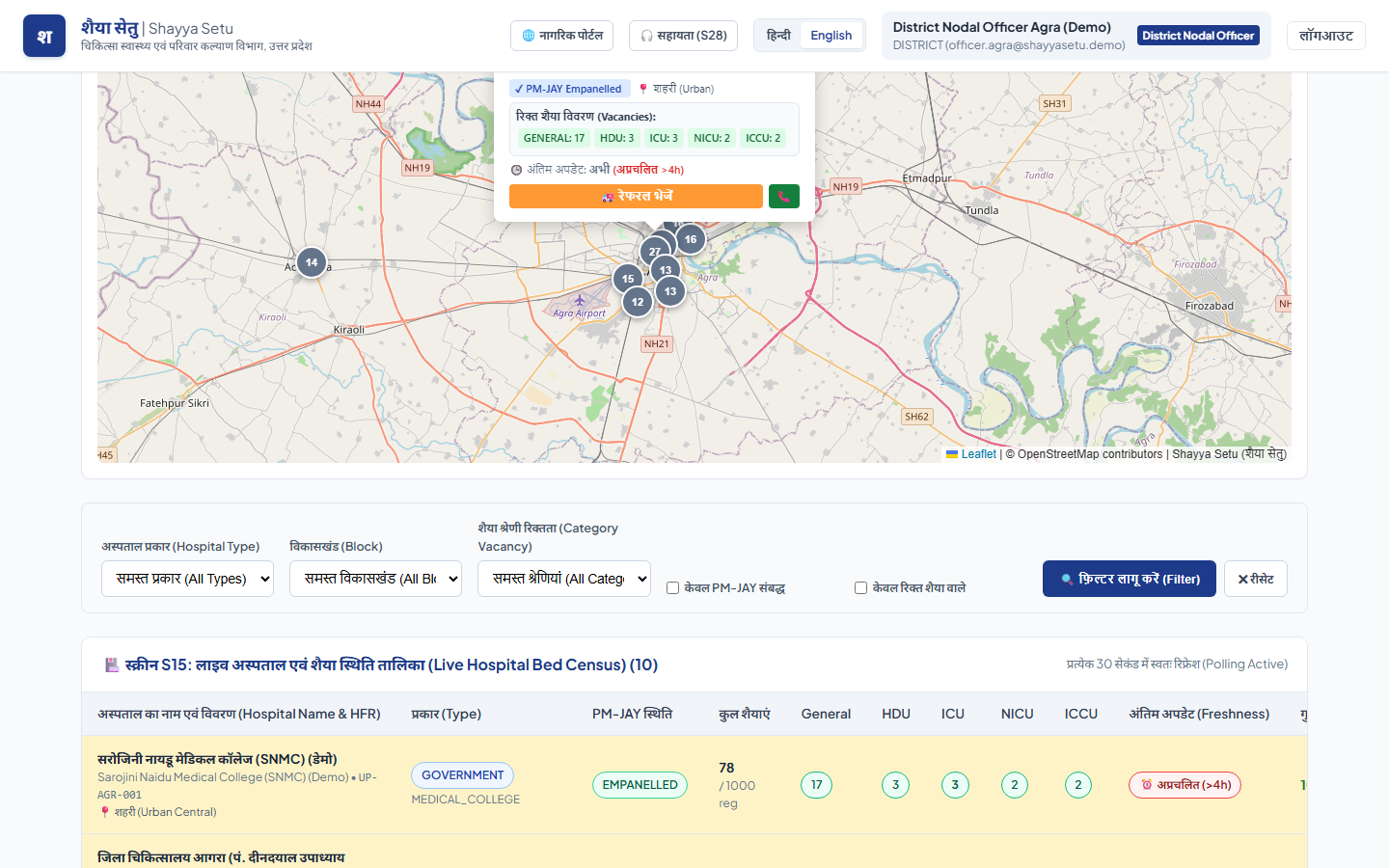

ID: district/d04_map_popup
📅 Screenshot Date: 27 Sep 2026
- Inspect live bed counts by category, nodal phone contact, and last-update freshness.
